Nordik HVLS Super Blade
Nordik HVLS Super Blade
GREAT SPACES REQUIRE GREAT EFFICIENCY.
Well-being meets energy saving.
Equipped with EC motors that guarantee elevated performance, low consumption and reduced noise emissions, the HVLS SUPER BLADE is ideal for cooling and balancing temperatures in large environments.Download Brochure
Advantages and benefits
The HVLS SUPER BLADE promotes the cooling of large environments by reducing stagnation and humidity whilst ensuring the best compromise between environmental comfort and personal well-being.
By compressing the warm air that concentrates close to the ceiling the HVLS SUPER BLADE ensures the room stays at an adequate temperature at the occupants level within the room.
Destratification = Comfort
Destratification fans are designed to induce air movement which ensures that air is mixed to produce a uniform temperature within the building envelope.
Efficiency = Energy saving
Destratification fans in industrial buildings with high ceilings, operating a warm air heating system, can reduce energy consumption dramatically.
Reduced consumption = Economic savings
Ceiling fans are particularly suitable both in industrial contexts, where opting for air-conditioning systems would be too expensive, and in commercial spaces where their action allows significant savings all-round.
FILTECH Swiss SA
The Filtech company develops, manufactures and markets high quality filters that protect people. Filtech has installed 6 pieces of our 3-meter Hvls in their manufacturing plant.Watch Gallery
Caneva World Resort (VR)
This solution gives a feeling of well-being and freshness, making the customer experience more pleasant.Watch video
Bustert Landwirtschaft (Germany)
We are very enthusiastic about the performance and the pleasant climate in the stable. The fans have a very high air circulation and are extremely quiet, which is to the satisfaction of the cows and the employees. Thanks to the air movement, we were able to increase the performance of the cows even in hot temperatures.Watch Gallery
Thanks to the installation of the VORTICE HVLS industrial sweep fans, the DONALISIO Farm in Bra (located in the province of Cuneo) has found many features and benefits of using this product.Watch video
TRANSFER OIL S.p.A.
TRANSFER OIL S.p.A.
TRANSFER OIL one of the major thermoplastic hose manufacturer for medium and high pressure, whit a total shed volume of 32000 m3 chooses VORTICE to improve the comfort of its employees.Watch video
How it works and applications
5-blade NORDIK HVLS SUPER BLADE industrial ceiling fans are ideal for cooling and balancing temperatures in large spaces.
They guarantee high performance (up to 850,000 m3/h), low energy consumption and the possibility of integration into a BMS (Building Management System).
With a high degree of resistance to water and dust (IP65), they combine an extended temperature range of continuous operation (-10° C/+50° C) whilst guaranteeing a broad range of speed regulation, thanks to the brushless motors. These fans promote an ideal level of comfort and an optimal temperature balance throughout the entire room, both in summer and winter.
Elevated air flows
The ultra-high air flows (850,000 m3/h) at very low speeds ensure greater efficiency and lower noise levels.
The aerodynamic blades in 5 different diameters (from 3 to 7 metres) are made of extruded aluminium and come equipped with winglet that reduce the resistance.

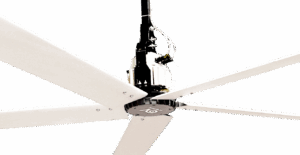

The brushless motors are designed to ensure high performance, low consumption and extensive speed adjustment ranges. High degree of dust and water protection (IP65).
NORDIK HVLS SUPER BLADE RANGE
|NORDIK HVLS SUPERBLADE 300/120” T||61126||3000||1880||1470|
|NORDIK HVLS SUPERBLADE 300/120” TL||61127||3000||3310||3000|
|NORDIK HVLS SUPERBLADE 300/120” M||61130||3000||1880||1470|
|NORDIK HVLS SUPERBLADE 300/120” ML||61131||3000||3310||3000|
|NORDIK HVLS SUPERBLADE 300/120” ET||61143||3000||1880||1470|
|NORDIK HVLS SUPERBLADE 300/120” ETL||61144||3000||3310||3000|
|NORDIK HVLS SUPER BLADE 400/160” T||61128||4000||1880||1470|
|NORDIK HVLS SUPER BLADE 400/160” TL||61129||4000||3310||3000|
|NORDIK HVLS SUPER BLADE 400/160” M||61132||4000||1880||1470|
|NORDIK HVLS SUPER BLADE 400/160” ML||61133||4000||3310||3000|
|NORDIK HVLS SUPER BLADE 400/160” ET||61145||4000||1880||1470|
|NORDIK HVLS SUPER BLADE 400/160” ETL||61147||4000||3310||3000|
|NORDIK HVLS SUPER BLADE 500/200” T||61134||5000||1880||1470|
|NORDIK HVLS SUPER BLADE 500/200” TL||61135||5000||3310||3000|
|NORDIK HVLS SUPER BLADE 600/240” T||61136||6000||1880||1470|
|NORDIK HVLS SUPER BLADE 600/240” TL||61139||6000||3310||3000|
|NORDIK HVLS SUPER BLADE 700/280” T||61137||7000||1880||1470|
|NORDIK HVLS SUPER BLADE 700/280” ST||61138||7000||1880||1470|
|NORDIK HVLS SUPER BLADE 700/280” TL||61141||7000||3310||3000|
|NORDIK HVLS SUPER BLADE 700/280” STL||61142||7000||3310||3000|
|Product||Code||V~50/60Hz||W Max||A Max||RPM||Max airflow M3/H||ØM||N° Blade||Kg|
|NORDIK HVLS SUPER BLADE 300/120” T||61126||200-480||600||1.43||160||310.000||3||5||80.5|
|NORDIK HVLS SUPER BLADE 300/120” TL||61127||200-480||600||1.43||160||310.000||3||5||89|
|NORDIK HVLS SUPER BLADE 300/120” M||61130||85-264||405||1.98||140||270.000||3||5||70|
|NORDIK HVLS SUPER BLADE 300/120” ML||61131||85-264||400||1.98||80||270.000||3||5||70|
|NORDIK HVLS SUPER BLADE 300/120” ET||61143||200-480||725||1.97||140||280.000||3||5||70|
|NORDIK HVLS SUPER BLADE 300/120” ETL||61144||200-480||725||1.97||150||280.000||3||5||70|
|NORDIK HVLS SUPER BLADE 400/160” T||61128||200-480||650||1.67||150||370.000||4||5||88|
|NORDIK HVLS SUPER BLADE 400/160” TL||61129||200-480||650||1.67||100||370.000||4||5||96.5|
|NORDIK HVLS SUPER BLADE 400/160” M||61132||85-264||280||2.70||100||330.000||4||5||76.5|
|NORDIK HVLS SUPER BLADE 400/160” ML||61133||85-264||280||2.70||80||330.000||4||5||76.5|
|NORDIK HVLS SUPER BLADE 400/160” ET||61145||200-480||370||1.01||80||330.000||4||5||76.5|
|NORDIK HVLS SUPER BLADE 400/160” ETL||61147||200-480||370||1.01||80||330.000||4||5||76.5|
|NORDIK HVLS SUPER BLADE 500/200” T||61134||200-480||850||1.97||80||530.000||5||5||113|
|NORDIK HVLS SUPER BLADE 500/200” TL||61135||200-480||850||1.97||80||530.000||5||5||113|
|NORDIK HVLS SUPER BLADE 600/240” T||61136||200-480||1100||2.69||65||600.000||6||5||121|
|NORDIK HVLS SUPER BLADE 600/240” TL||61139||200-480||1100||2.69||65||600.000||6||5||121|
|NORDIK HVLS SUPER BLADE 700/280” T||61137||200-480||900||1.35||38||650.000||7||5||129|
|NORDIK HVLS SUPER BLADE 700/280” ST||61138||200-480||665||1.65||50||850.000||7||5||140|
|NORDIK HVLS SUPER BLADE 700/280” TL||61141||200-480||525||1.35||38||650.000||7||5||129|
|NORDIK HVLS SUPER BLADE 700/280” STL||61142||200-480||665||1.65||50||850.000||7||5||140|
VORT T-HCS CODICE 20151
Specificamente progettata per l'impiego in campo zootecnico, la centralina VORT T-HCS è un dispositivo di controllo opzionale, collegato a filo, dotato di display LCD e in grado di monitorare automaticamente i ventilatori collegati in base ai valori di temperatura, umidità relativa e THI (Temperature Humidity Index), l'indice bioclimatico che combina l'effetto simultaneo della temperatura e dell'umidità relativa ed è utilizzato per determinare lo stress indotto dal calore nel bestiame.View details
VORT T CODICE 21137
A multi-speed regulator that allows simultaneous automatic regulation of up to 20 fans, to control ventilation according to temperature or wind speed, with automatic or manual handling. Power voltage: 220 V. Power supply frequency: 50 Hz.View details
VORT T-PLUS CODICE 20152
It is a PLC unit, designed to control the microclimate in livestock breeding facilities;thanks to VORT T-PLUS it is possible to plan the operation of each device installedbased on the temperature, humidity, and wind speed values detected.View details
VORT MASTER CODICE 20153
VOLT MASTER controlunit
Specifically designed to be used in the zootechnical field, the VOLT MASTER controlunit guarantees the monitoring of the microclimate in cattle breeding facilities bymanaging ventilation, air speed, cylinders, (temperature and amperometric) alarms,based on temperature, humidity, THI, air speed, and other values detected by thesensors installed.View details
NHVLS-RD CODICE 21136
Suspension Tie Rod Kit
An optional kit, designed to ensure a robust and safe installation. This kit is mandatory in the event of strong winds, risk of accidental collision with machinery or moving objects near the ceiling fan, the presence of birds, installation in seismic zones or areas characterised by vibrations (such as industrial processes involving industrial hammers or presses).View details
HVLS SUPER BLADE-RD L CODICE 21615
Suspension Tie Rod Kit
This kit is mandatory in case of: strong wind, risk of accidental collisions with machines or objects in motion near the ceiling fans, presence of birds, seismic zone installation or areas charaterized by vibrations.View details
USB C CODICE 21198
Modbus-USB USB-C Converter
Modbus-USB US converter for remote configuration and monitoring via PC of the fans associated with the VORT T control unit.View details
POT-I CODICE 12832
Wall and recessed potentiometer with ON/OFF switch, for installation in a Standard 503 box. Available functions: ON/OFF; potentiometer. Single-phase power supply: 220-240V/50Hz.View details
POT CODICE 12828
Wall and recessed potentiometer in a DIN-standard electrical box for the external setting of regulators with 0-10 V input and US supply voltage (max. 12 VDC/1 mA). The desired output voltage is gradually adjusted from 0 to the supply voltage V via knob. Available functions: ON/OFF; potentiometer. Resistance: 10 kO. Switch rating: 4 A/250 Vac - 10 A/12 Vdc.View details
WP CODICE 21197
An anemometer to be combined with VORT T for automatic fan control.View details
STF1 CODICE 20267
Anchoring bracket on steel beams. Option 1View details
STF2 CODICE 20268
Anchoring bracket on steel beams. Option 2View details
STF3 CODICE 20269
Anchoring brackets kit
Anchoring brackets kit with existing structure 3m-5m. Rod not supplied.View details
STF4 CODICE 20270
Anchoring brackets kit
Anchoring brackets kit with hinge included (3 m length).View details
STF5 CODICE 20271
Anchoring brackets kit
Anchoring brackets kit with omega beam.View details
STF6 CODICE 20272
Anchoring brackets kit
Bracket kit for anchorage on joist under a windshield (2 m length)View details
In favour of the Client
Vortice believes in the value of customer service, to be combined with the quality of the product. For this reason, a comprehensive, fast and efficient consulting service has been developed.
Contact our Pre-sales Office for an analysis of your needs and to find the most suitable solutions.
What advantages do ceiling fans have over air conditioning?
Unlike traditional air-conditioning systems, which cool the air within the premises, ceiling fans act directly on the occupants, cooling their bodies without changing the temperature of the room. This results in significantly lower consumption, with obvious advantages both in terms of the costs of bills and environmental impact. In addition, the absence of effects on ambient air temperature means that the ceiling fans can be effectively used to cool bodies in outdoor open environments, such as verandas, outdoor dining spaces or – for the livestock sector – stables.
What are the advantages of NORDIK HVLS SUPER BLADE fans in the cold season (destratification)?
he density of warm air is lower than that of cold air. This causes warm air to rise naturally due to the effect of convective motions, concentrating near the ceiling. This phenomenon, known as stratification, causes a considerable waste of energy in environments with extensive heights (warehouses, industrial buildings, lobbies, airport and the like) in the area subject to rigid winter temperatures, rendering it necessary to resort to heating systems, owing to the need to transfer additional heat to the layers of air at human height, to compensate for the upward flow of the warmer air.
The most efficient and effective way to solve the problem is to scramble the air by pushing the warmer layers near the ceiling down, an action known as destratification. Thanks to the ability to rotate at extremely low speeds, NORDIK HVLS SUPER BLADE fans are able to achieve the expected result by maintaining the air speed at human height at values below 12 metres per minute, preventing any discomfort.
The adoption of the electronic control unit VORT T, which integrates a temperature sensor, also facilitates the automation of the speed regulation of the NORDIK HVLS SUPER BLADE fans in accordance with any changes to environmental conditions.
What is the range of impact of NORDIK HVLS SUPER BLADE fans?
The NORDIK HVLS SUPER BLADE series consists of various models, varying in terms of the nominal diameters, the power of the motors installed and the length of the blades suspended, being further enriched by a broad array of accessories for optimising use in a wide variety of potential installations, with areas of effectiveness ranging between 110 and 910 m2, corresponding to the circular surface area of amplitude equal to 4 times the nominal diameter of the unit.
What advantages do NORDIK HVLS SUPER BLADE EC motors offer over AC motors?
Compared to the cheaper fans equipped with AC motors, EC brushless motors offer a number of advantages that can be summarised as:
· Significantly lower consumption;
· Wide adjustment range (from 10 to 160 Rpm) of the rotation speed, thanks to the integrated driver that renders unnecessary optional external devices that are expensive and complex to install and configure – adjustment merely requires a working potentiometer with a 0-10 V signal.
· Reduced maintenance costs, given the absence of gears in gearboxes that are often combined with traditional motors;
· An extensive range of installation alternatives, by virtue of the possible supply from single- and three-phase lines, at voltages between 200 and 480 V and at frequencies of 50 and 60 Hz;
· Possibility of integration into a Building Management System (BMS), thanks to the Modbus communication protocol, via the RS485 port integrated into the motor driver.
What constraints should be respected when using NORDIK HVLS SUPER BLADE fans?
Fans of the NORDIK HVLS SUPER BLADE series can operate effectively in ambient temperatures between -10° C and + 50° C. The elevated (IP65) degree of protection of the motor against dust and water sources also renders these fans suitable for use in areas directly exposed to the elements.
Does the NORDIK HVLS SUPER BLADE require maintenance?
The fans in the NORDIK HVLS SUPER BLADE series are produced tobe virtually “maintenance-free”.
Under heavy working conditions (such as continuous operation at top speed in the presence of particularly high temperatures and humidity levels), periodic inspection should be conducted (we recommend annually) to confirm the correct status of the device coupling the blade to the support that binds them to the motor.
